Built with Samsung 18650 35E cells and an XT90 connector, this 10.8V 14Ah Li-ion battery pack delivers reliable power for drones, AGVs, and industrial equipment. Designed for demanding applications with professional OEM/ODM battery customization.
For commercial orders and large purchases, contact us at services@himaxelectronics.com

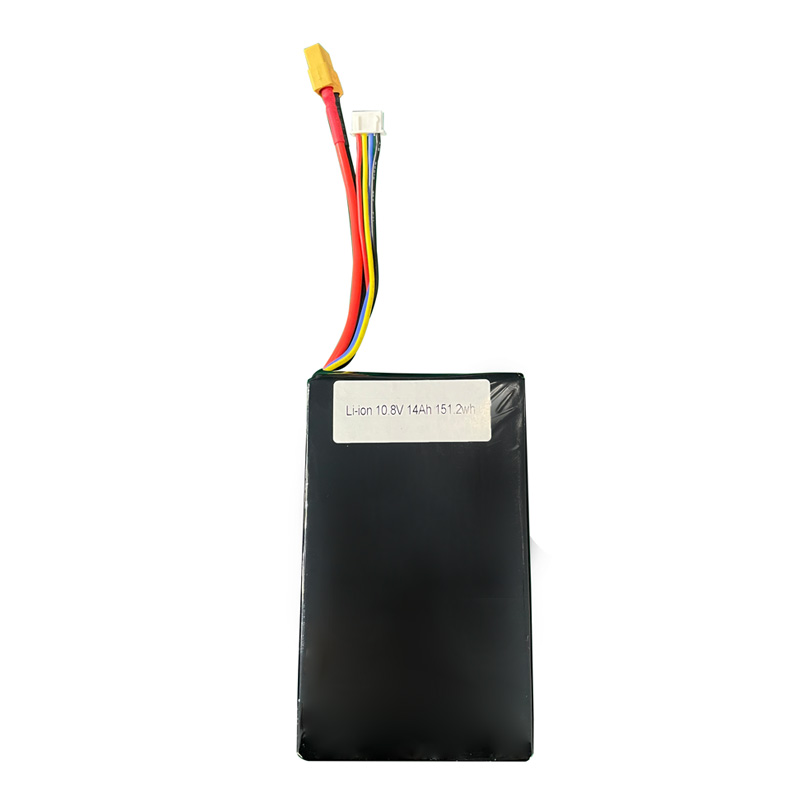

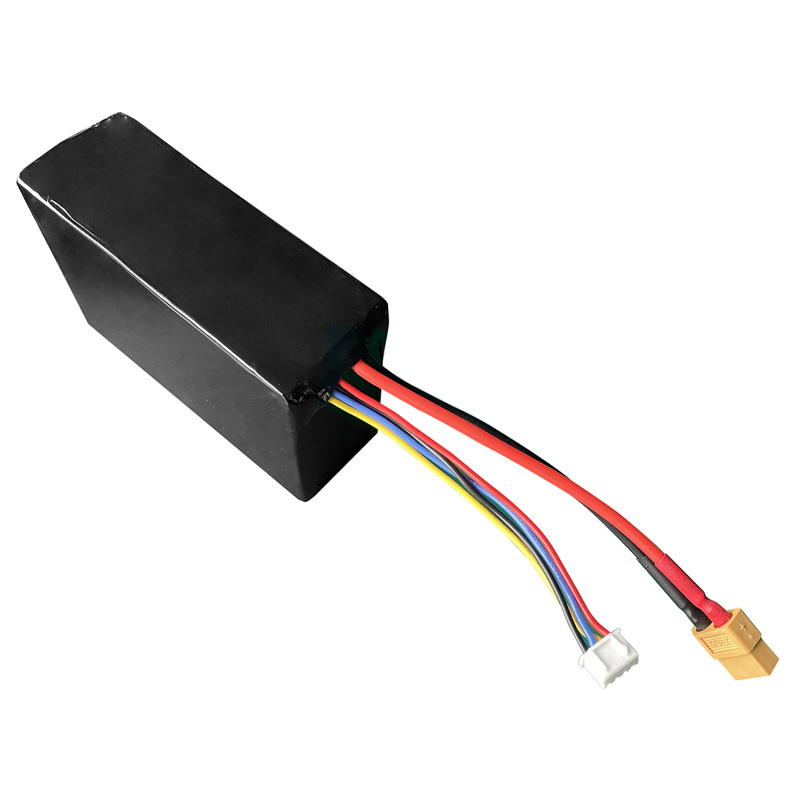

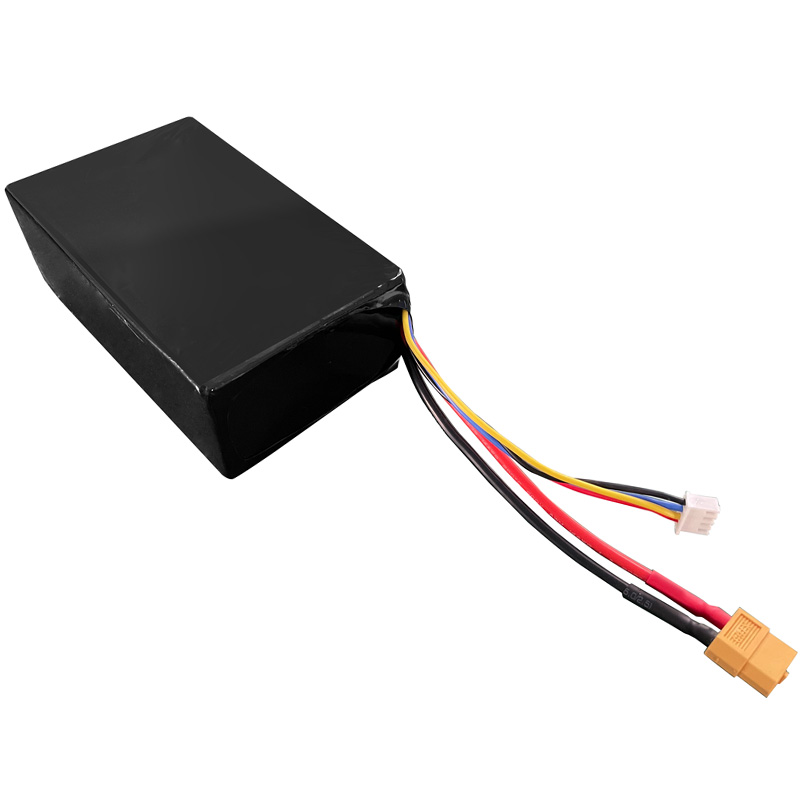

HiMAX 10.8V 14Ah Rechargeable Samsung 18650 35E Li-ion Battery Pack with XT90 Connect for Drone, Industrial Equipmentor
High‑Energy, Compact Design
Configured with twelve Samsung 18650‑35E cells in a 3S4P layout for a true 14 Ah capacity and 151.2 Wh energy density, delivering reliable 10.8 V power in a slim 114 × 40 × 70.5 mm package. Perfect for portable tools, robotics, and backup systems.
Premium Connectors & Customization by HiMAXBATT
Features heavy‑duty 14 AWG power leads (3235) terminated in XT90 male/female housings (120 mm) plus 22 AWG balance leads (3239) with GXH 4‑pin plug (100 mm). HiMAXBATT offers full battery customization—choose alternate connectors, wire gauges, charge levels, or enclosure colors to fit your exact needs.
Specifications
Samsung OEM 35E 18650 customized rechargeable lithium ion battery grade A high quality rechargeable 10.8V 14Ah
Nominal Voltage
10.8V
Nominal Capacity
14Ah
Energy
151.2Wh
Charge Voltage
12.6V
Discharge cut-off voltage
7.95V
Charge Method
CC/CV
Standard Charge Current
2.8A
Max. Charge Current
7A
Standard Discharge Current
2.8A
Max. Continues Discharge current
7A
Cycle Life
500 times
Dimension
76*65.5*68.5mm
Weight
Approx 665g
Storage Temperature
-10°C~45°C
Frequently Asked Questions
Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us.
We’ll get back to you within 24 hours.
1. What cell chemistry and configuration does this 10.8 V pack use?
This battery pack uses Samsung 18650‑35E li‑ion cells arranged in 3 series × 4 parallel (3S4P), providing 10.8 V nominal voltage and 14 Ah capacity.
2. Which connectors and cable specifications are included?
It comes with 14 AWG (3235) power leads and XT90 male/female connectors (120 mm long) plus 22 AWG (3239) balance leads with a GXH 4‑pin plug (100 mm), ensuring safe, low‑resistance connections.
3. Is there a built‑in BMS or do I need an external charger/protection module?
This pack ships at 30% state‑of‑charge and requires an external lithium‑ion charger with balance functionality. HiMAXBATT can integrate a custom BMS solution on request.
4. What are the exact dimensions and mounting options?
Maximum dimensions are 114.0 × 40.0 × 70.5 mm. A durable mounting bracket is included for easy installation in enclosures or chassis.
5. Can HiMAXBATT customize the pack for my application?
Yes—HiMAXBATT supports complete battery pack customization. Specify alternate cell counts, connector types (e.g., XT60, Molex), cable lengths, charge level presets, or housing styles to match your project requirements.
