Power outdoor cameras, security systems, and backup power equipment with this 24V 12Ah LiFePO4 battery pack. Equipped with a 10A BMS for enhanced protection, it delivers reliable performance and supports customized OEM/ODM battery solutions.
For commercial orders and large purchases, contact us at services@himaxelectronics.com

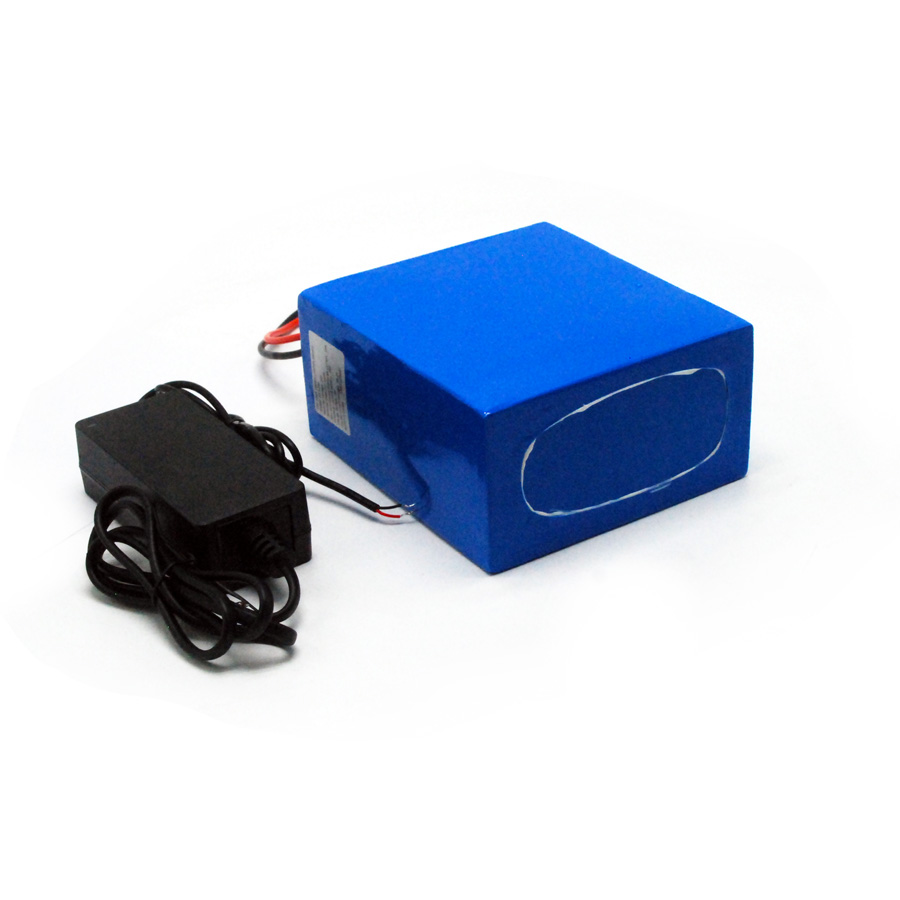

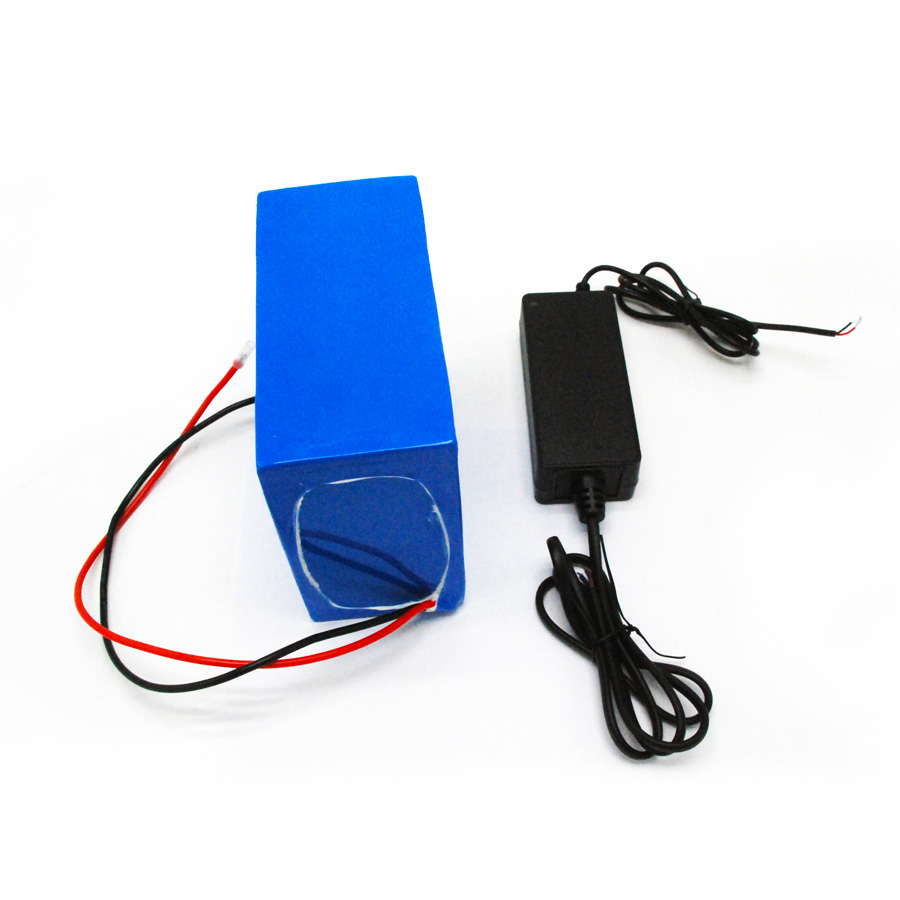

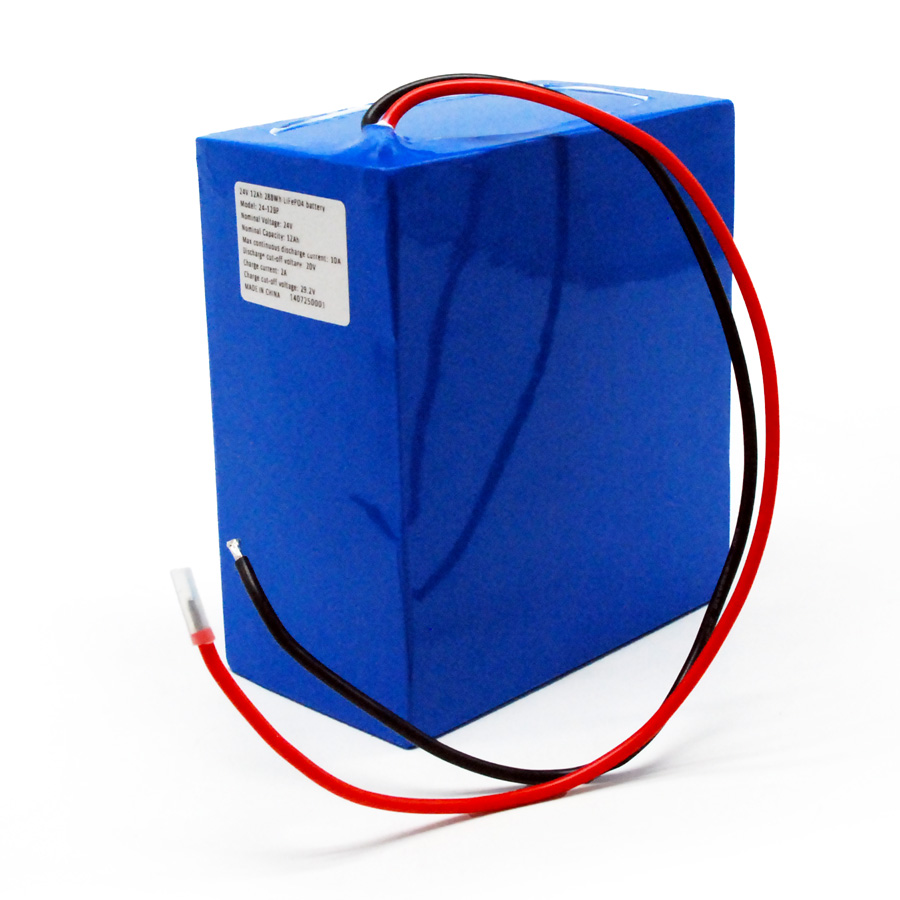

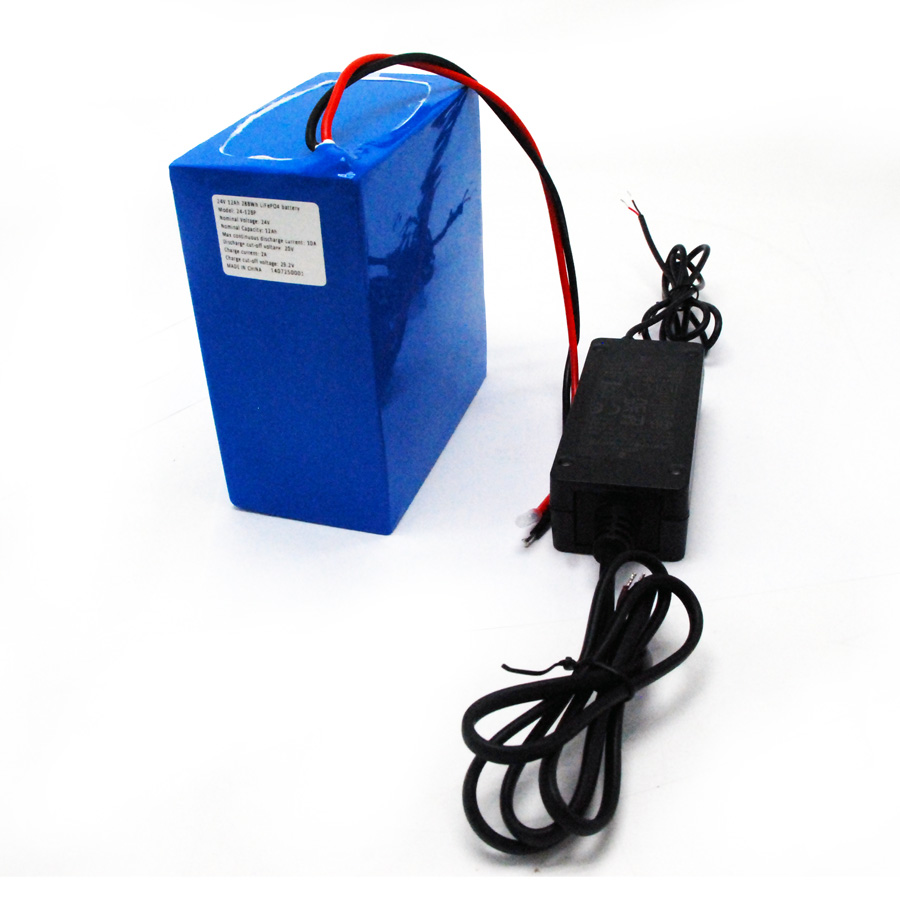

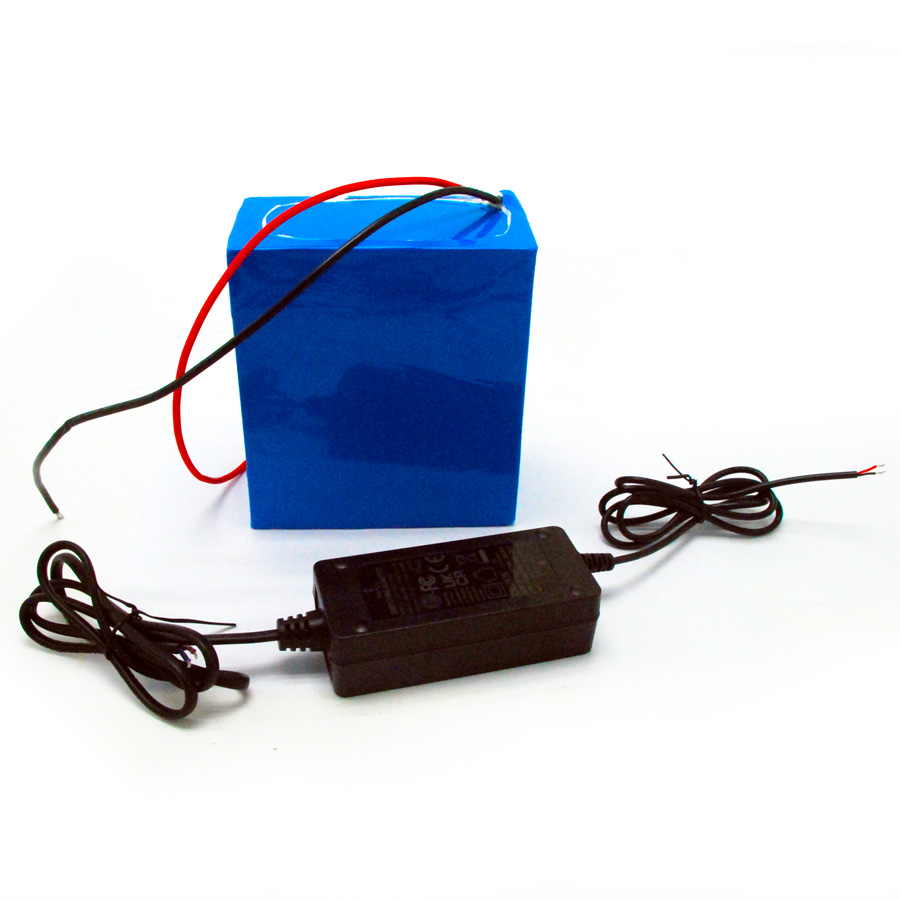

HiMAX 24V 12Ah Rechargeable LiFePO4 Battery Pack with 10A BMS for Monitoring, Backup Power Supply
All‑around Protection & Custom BMS Tuning
Integrated BMS delivers over‑charge, over‑discharge, over‑current and short‑circuit safeguards—and HiMAXBATT can tailor balance and cut‑off thresholds to your exact application.
Rugged, Weatherproof Design
Compact PVC‑sheathed pack (145 × 135 × 75 mm) with IP‑rated waterproofing—plus HiMAXBATT offers bespoke enclosure colors and labeling to match your brand.
Specifications
Rechargeable 24V 12Ah LiFePO4 Battery Pack
Nominal Voltage
24V
Nominal Capacity
12Ah
Energy
288Wh
Charge Voltage
29.2V
Discharge cut-off voltage
20V
Charge Method
CC/CV
Standard Charge Current
2.4A
Max. Charge Current
6A
Standard Discharge Current
2.4A
Max. Continues Discharge current
10A
Cycle Life
2000 times （80% SOC）
Dimension
145*135*75mm
Weight
Approx 642g
Storage Temperature
-10°C~45°C
Frequently Asked Questions
HiMAXBATT Battery specializes in providing class A LiFePO4 batteries for bulk buyers, offering flexible customization options to meet your specific requirements. Our wholesale solutions ensure high-quality, cost-effective batteries for large-scale applications.
1. What is the expected cycle life of this LiFePO₄ battery pack?
This 24V 12Ah pack delivers over 2,000 charge/discharge cycles at 80% depth of discharge, thanks to premium 32650‑6000 mAh cells and a smart BMS.
2. Can HiMAXBATT customize the BMS parameters?
Yes—HiMAXBATT can tailor over‑charge, over‑discharge, and balance thresholds, as well as charge/discharge cut‑offs, to match your specific monitoring‑equipment profile.
3. Is the pack waterproof and suited for outdoor use?
The PVC‑sheathed casing is IP65‑rated, offering splash and dust protection. We also offer enhanced IP67 or IP68 sealing on request.
4. What wiring, connectors, and labeling options are available?
Standard output is bare 14 AWG leads (350–400 mm). HiMAXBATT can fit any connector (e.g. Anderson, XT60) and apply custom labels or brand colors.
5. Do you provide test reports and certifications?
Yes—each pack is IEC 62619 and CE certified. HiMAXBATT can include your purchase-order number and custom QR/serial codes on the label.
Download
Didn’t find the battery you were looking for or need a customized battery please contact us.
