45-Min Rapid Energy Replenishment (1C Fast Charge): Fully charges to over 80% in just 45 minutes (1200mA) via optimized micro-pore plate technology. Workers can easily top up devices during 15-minute shift handovers, eliminating the need for excessive spare battery stock.
1200+ Heavy-Duty Lifecycles: Upgraded from conventional NiMH chemistry, this custom formulation delivers over 1200 cycles under rapid-charging. Lasts up to 4+ years under intensive usage, replacing up to 4 sets of standard batteries and dramatically slashing consumable overheads.
Flat Dual-Pole Gold-Plated Slide Contacts (Zero Wear): Replaces fragile coaxial rings with flat, thick-gold-plated (≥0.5μm) back contacts on heavy-duty ABS housing. Engineered to survive 5000+ docking slide-ins with stable zero-impedance power delivery.
Eliminate Charging Downtime: 45-Min Fast-Charge NiMH Power Pack
Custom-engineered for 24/7 smart logistics. Swap less and save more with our 1C high-rate, flat gold-contact modular battery technology from himaxbatt.
✦ Re-Engineering Power Delivery for 24/7 Smart Warehouse Operations
In high-throughput, 24/7 automated warehouses, stopping equipment to charge is a direct drag on operational profitability. Traditional remote controls and handheld PDA terminals typically require standard batteries that take 8 to 10 hours to fully charge. This massive lag forces operations to purchase multiple backup terminals and heavy spare battery inventory simply to maintain continuous shifts.
At himaxbatt, our chemical engineering team addressed this bottleneck directly by developing a high-rate, low-internal-resistance NiMH AA formulation. By optimizing the micro-porous coating structure of the battery plates, we reduced the individual cell’s internal resistance to an impressive ≤15mΩ. This ultra-low resistance is the thermal foundation that enables safe 1C (1.2A) fast charging without dangerous heat buildup. Instead of being grounded for hours, operators can simply slide the terminal into a wall-mounted quick-charge docking slot during a 15-minute shift break to secure an emergency flash charge, or fully replenish the battery to 80%+ capacity in just 45 minutes. With a reinforced cycle life of up to 1200+ runs, a single himaxbatt module outlasts four sets of conventional batteries, driving down replacement overhead and keeping warehouse workflows completely uninterrupted.

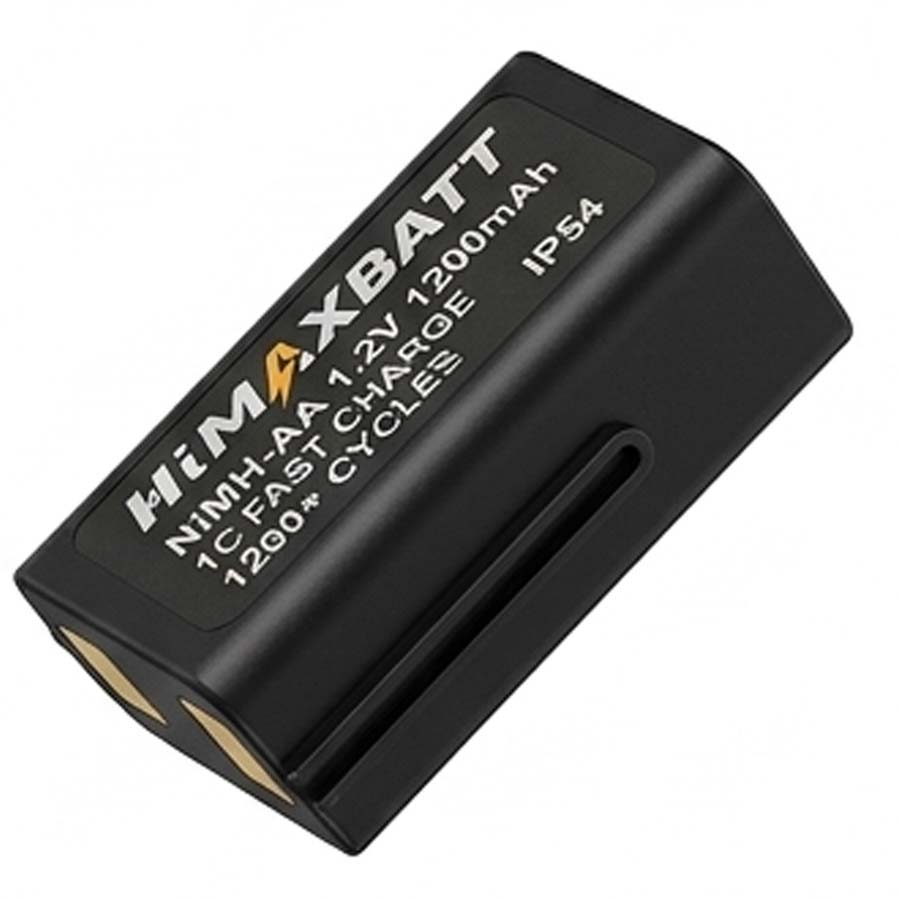

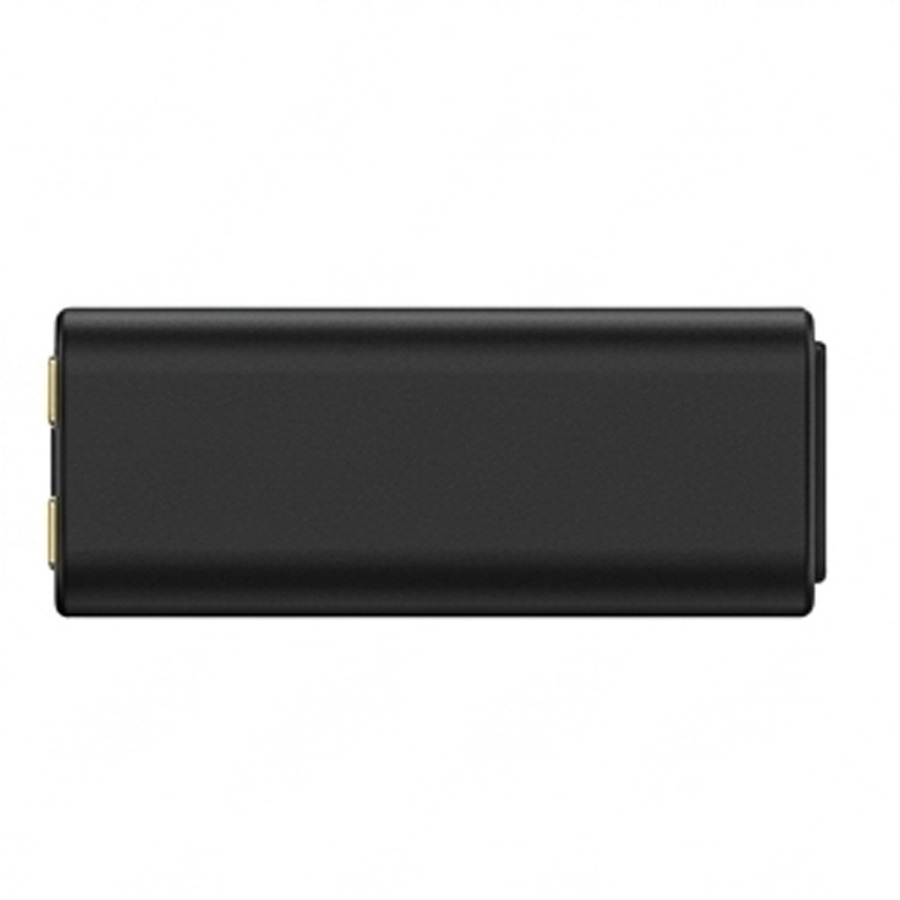

A reliable electrochemical core is only as good as its physical connection to the field device. Traditional coaxial round metal rings on batteries suffer rapid contact wear and tear, leading to erratic power delivery and frequent scan failures on warehouse floors. Recognizing this, our industrial designers re-engineered the module’s exterior from the ground up. We replaced coaxial ring configurations with a flat, back-mounted dual-pole gold-plated contact array (gold thickness ≥0.5μm) integrated directly into an ultrasonically welded, flame-retardant ABS matte-black housing

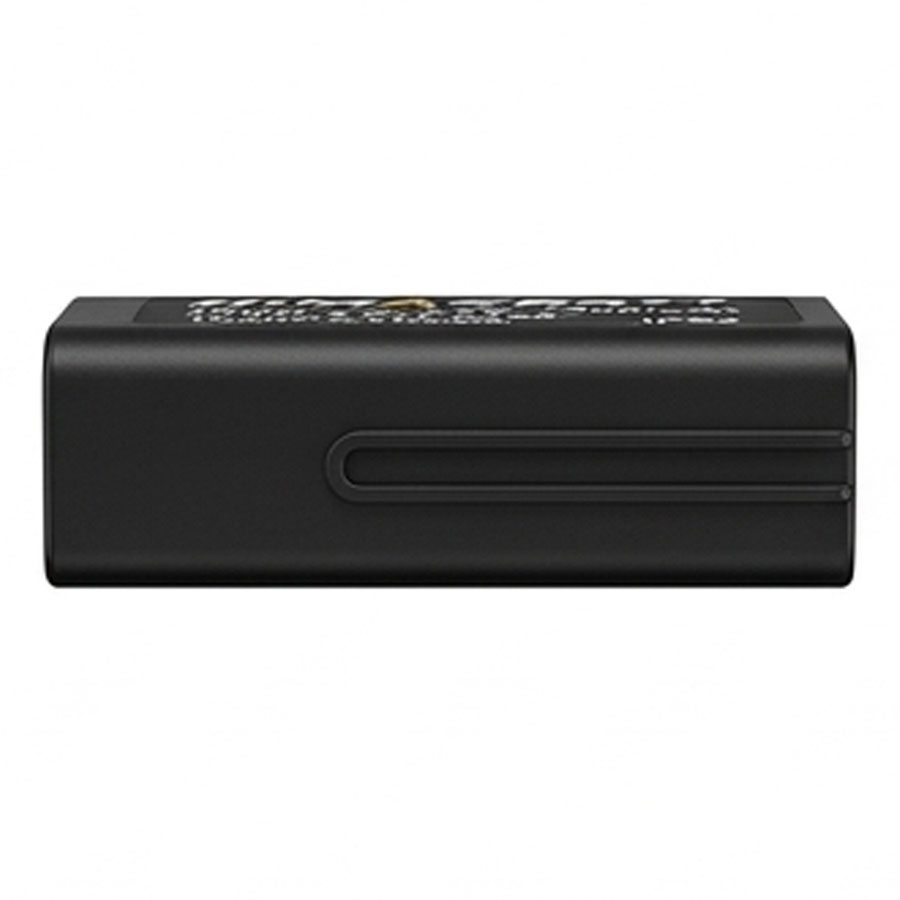

This structural overhaul allows the battery to perfectly align with the terminal’s internal spring pins upon sliding into place, tolerating over 5000 mechanical insertion cycles without any contact degradation. Physically engineered at a precise 54.0mm x 22.0mm x 20.0mm (tolerance of ±0.2mm), this module fits flawlessly into modern warehouse terminals, such as high-drain PDAs. The power output is dynamically matched to handle the sudden 3.0A pulse currents (lasting ≤500ms) required by powerful laser barcode scanning heads without experiencing dynamic voltage drops. Sealed to an IP54 rating, the robust enclosure shrugs off dust, splash water, and high-perspiration environments typical of intense physical labor, creating a highly trustworthy power solution compliant with CE-LVD, RoHS 2.0, and IEC 61951-2 industrial standards.
Specifications

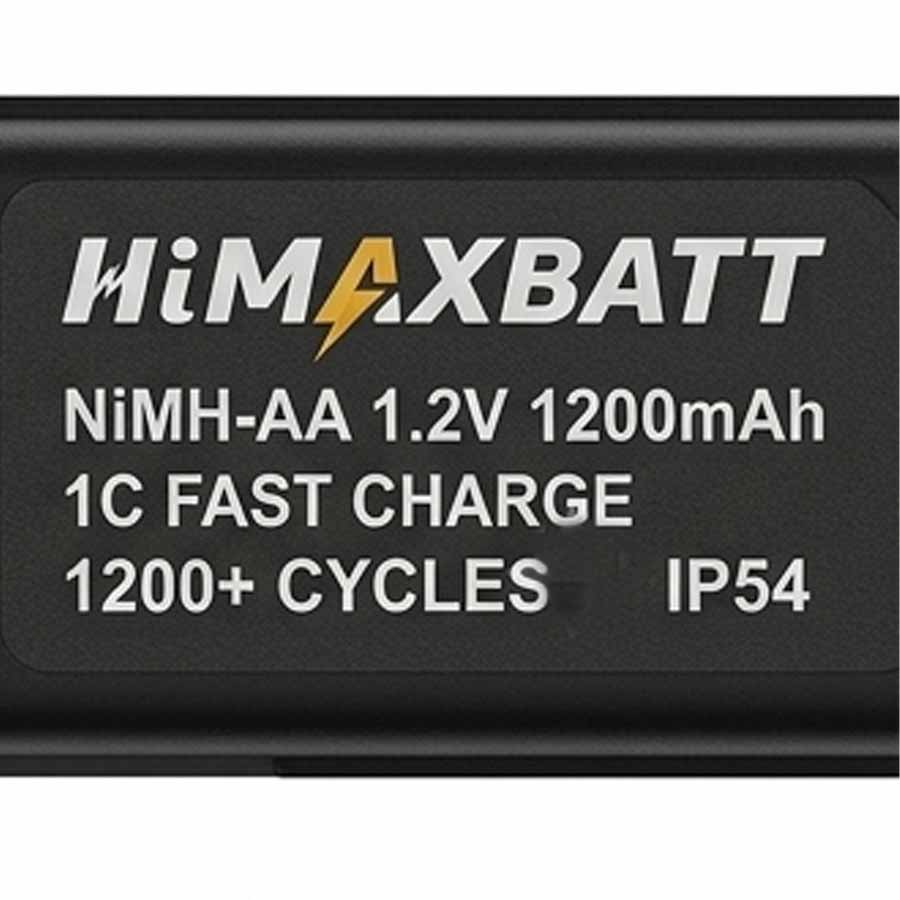

1.2V NiMH AA 1200mAh Battery Pack
Cell Model
NiMH-AA1200mAh-GBKS
Configuration
1S1P Single Cell Module
Nominal Voltage
1.2V
Max. Charge Voltage
1.42V
Discharge Cut-off Voltage
1.0V
Nominal Capacity
1200mAh
Continuous Discharge
1.2A
Peak Discharge
3.0A
Voltage Drop Cut-off
-ΔV: 5mV to 8mV drop
Temperature Rise Cut-off
dT/dt: ≥ 1°C/min temperature rise
Module Dimensions
Length 54.0mm * Width 22.0mm * Height 20.0mm
Casing Material
Flame-retardant ABS
Battery Interface
Flat, back-mounted dual-pole gold-plated contacts
Mating Durability
≥ 5000 docking/sliding cycles
Unit Net Weight
45g
Compliant Standards
CE-LVD, RoHS 2.0, IEC 61951-2 compliance
Frequently Asked Questions
When sourcing custom rechargeable battery modules for industrial smart logistics and high-intensity scanning terminals, procurement managers and engineering leads face critical challenges regarding fast-charge thermal safety, docking contact wear, and continuous pulse output. At himaxbatt, we understand these exact pain points. Below, we provide engineering-backed answers to the most common questions raised by automated warehouse and production line operations looking to switch to our customized fast-charge NiMH modules.
Can this custom NiMH battery pack really handle 1C (1.2A) fast charging safely without overheating or bloating?
Yes, absolutely. Traditional NiMH batteries suffer from thermal buildup during fast charging due to high internal resistance. To resolve this, our premium custom cells utilize an optimized micro-porous plate coating process that reduces the internal cell resistance to under 15mΩ (with overall module resistance controlled to ≤28mΩ). This ultra-low impedance keeps the temperature rise under 15°C throughout the 45-minute fast-charging cycle. Additionally, our charging protocol is designed with a strict hardware dual-loop safety cut-off—using high-precision -ΔV (5-8mV drop) and thermal dT/dt (≥1°C/min temperature rise rate)—to ensure absolute safety and prevent overcharging or bloating
Why did you change from a coaxial round ring terminal to a flat, back-mounted gold-plated contact design?

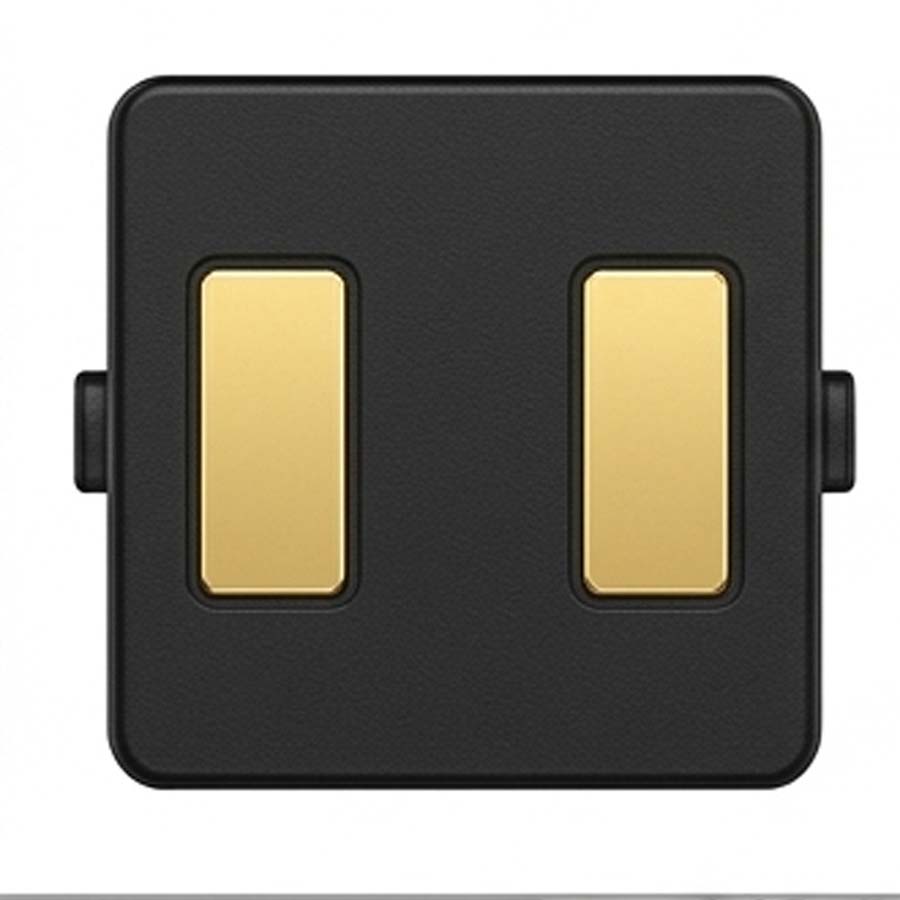

Coaxial circular rings on industrial batteries are prone to rapid physical degradation due to constant frictional rubbing in vibrating warehouse environments, leading to high resistance and power instability. Our flat, dual-pole gold-plated contact configuration (gold thickness ≥0.5μm) completely eliminates spring wear. The contacts are embedded flat against the flame-retardant ABS housing, allowing them to glide smoothly into the wall-mounted charging dock or remote controller’s internal contact plates. This upgrade provides a stable zero-impedance connection that comfortably exceeds 5,000 mating cycles without physical degradation or oxidation, even in high-humidity or high-sweat environments.
PDA barcode laser scanners pull high-current pulses instantly. Can this single-cell 1.2V module handle that load?
Yes. While the battery features a 1.2V nominal voltage with 1.2A (1C) continuous discharge capability (perfect for baseline scanning and communication), it is specifically engineered to handle high-power peak pulses. When a laser scanner activates, it draws an instantaneous surge current. Our pack is rated for a peak pulse discharge of up to 3.0A for durations ≤500ms. Thanks to the ultra-low cell resistance (≤15mΩ), the voltage remains stable above the critical device shutdown threshold during these sudden surges, preventing premature terminal power-offs or screen flickering.
What is the expected lifetime of this battery pack under daily heavy industrial shifts?
Traditional rechargeable batteries fade within 6 months when charged twice daily. In contrast, this high-rate custom NiMH chemistry provides over 1200 charging cycles (or more than 500 complete 100% Depth-of-Discharge cycles under extreme 1C fast charge/discharge environments) with over 80% capacity retention. In a typical modern warehouse with high-intensity three-shift operations where devices are rapidly charged multiple times a day during breaks, this battery pack delivers an exceptional operational lifespan of over 4 years.
Are these battery packs certified for international shipping and industrial safety compliance?
Yes. Our high-rate NiMH AA modules fully comply with strict international industrial and environmental standards, including CE-LVD and RoHS 2.0. The battery cells and structural packaging are designed and built in compliance with the IEC 61951-2 testing framework, ensuring safety during rapid charging and heavy discharging. (Please note: Unlike lithium-ion battery packs, these highly stable NiMH modules do not require mandatory UN38.3 certification, which simplifies international air cargo logistics and shipping declarations while maintaining exceptional safety).
