7.4V 7800mAh Rechargeable 18650 Li-ion Battery Pack with UL2595 Dual-Circuit Protection for Monitoring, Backup Power Supply

Suitable for CCTV(Closed-Circuit Television), Security Cameras; High capacity; B2B Customization

Categories 7.4V Lithium Ion Battery, Backup Power Supply Battery, CCTV, Lithium lon Battery, Monitoring Battery, Security Cameras

Nominal Voltage
7.4V

Nominal Capacity
7800mAh

Energy
57.72Wh

Designed for CCTV systems, security cameras, and backup power applications, this 7.4V 7800mAh rechargeable 18650 Li-ion battery pack features UL2595 dual-circuit protection, high-capacity output, and dependable OEM/ODM customization for B2B customers.
For commercial orders and large purchases, contact us at services@himaxelectronics.com

INQUIRY TO BUY

Description
Specifications
FAQs
Download

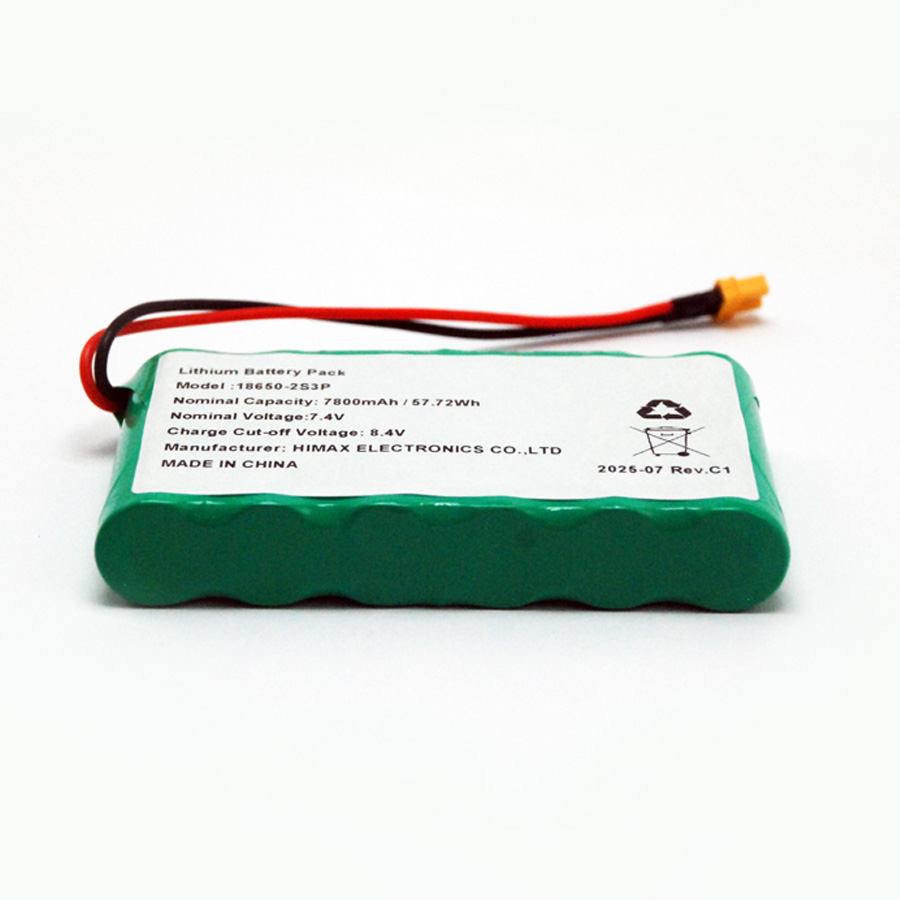

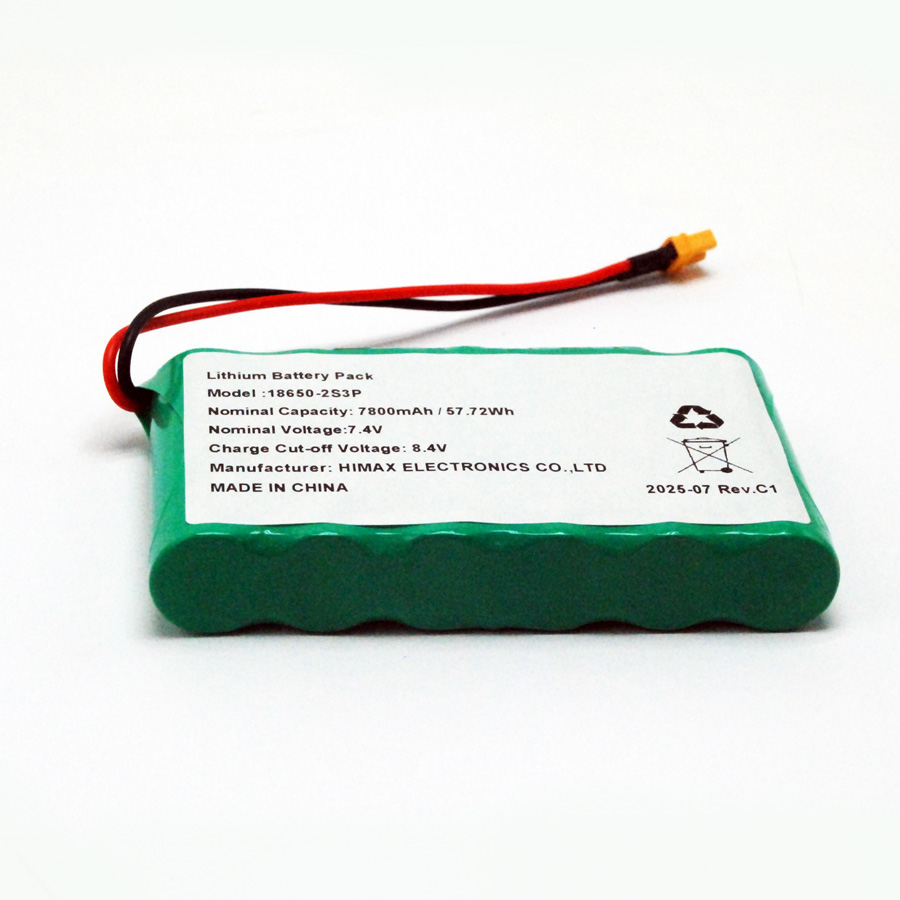

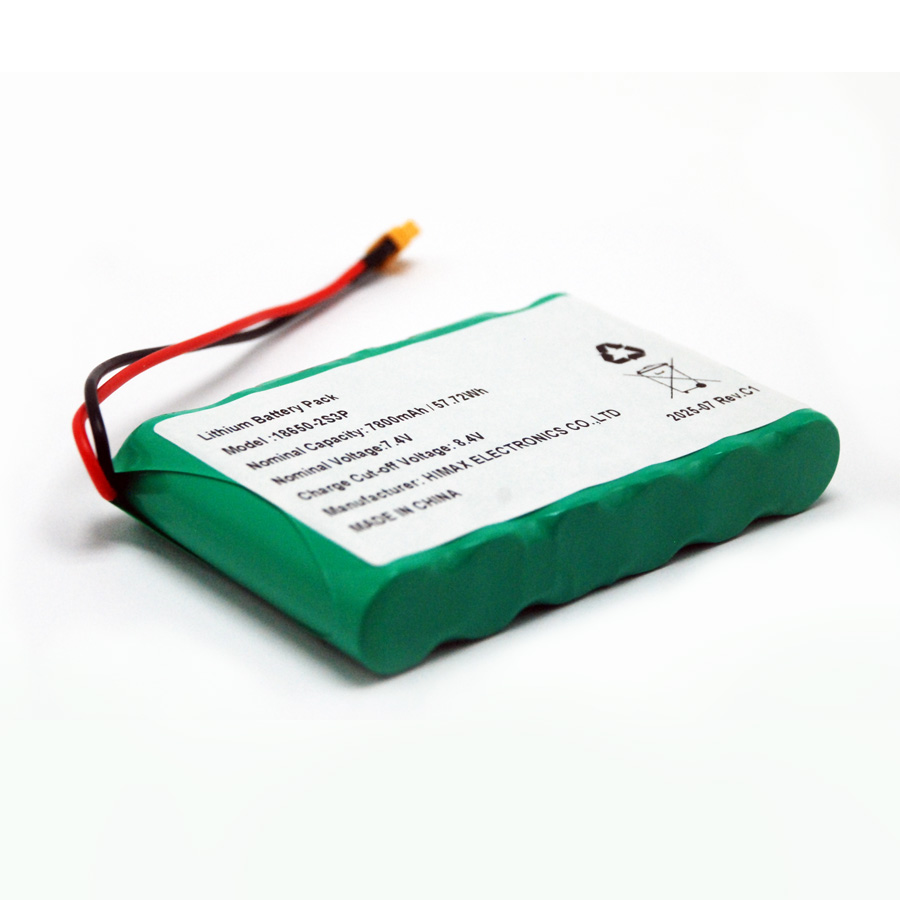

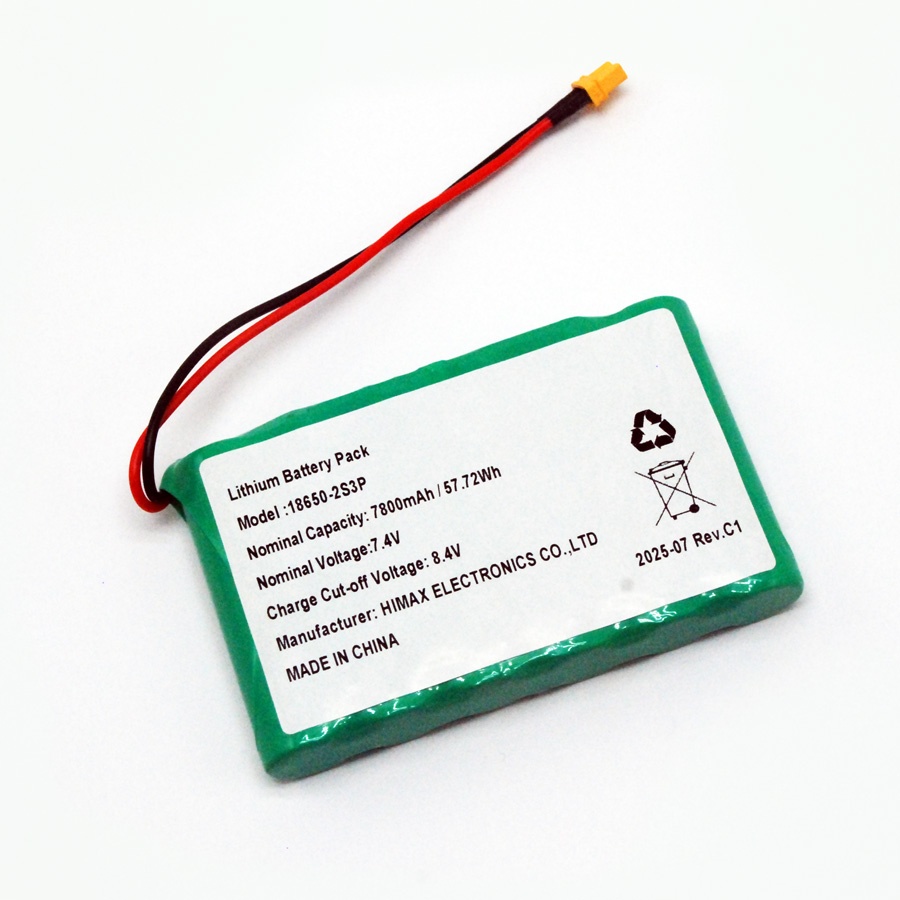

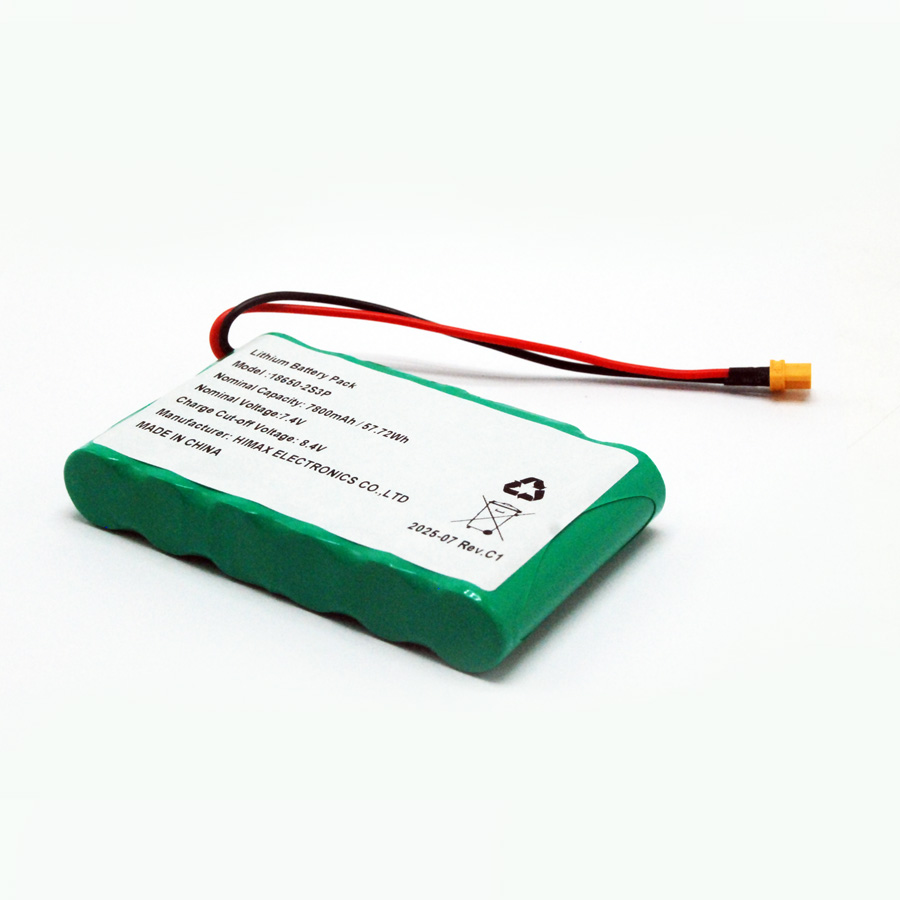

HiMAX 7.4V 7800mAh Rechargeable 18650 Li-ion Battery Pack with UL2595 Dual-Circuit Protection for Monitoring, Backup Power Supply

Massive Capacity & Custom Cell Configuration

Premium Samsung/A‑grade 18650 cells in a 2S3P layout deliver an industry‑leading 7800mAh and up to 10 A continuous discharge—HiMAXBATT can adjust series/parallel counts for higher voltage or capacity.

Certified Safety & Branding Options

UL2595‑compliant dual‑circuit BMS plus external temperature switch ensures industrial‑grade protection—and HiMAXBATT can apply your logo, custom labeling, and connector types per order.

Specifications

Lithium Battery Pack 7.4V 7800mAh Rechargeable Li-ion Battery

Nominal Voltage

7.4V

Nominal Capacity

7800mAh

Energy

57.72Wh

Charge Voltage

8.4V

Discharge cut-off voltage

5.5V

Charge Method

CC/CV

Standard Charge Current

1.56A

Max. Charge Current

3.9A

Standard Discharge Current

1.56A

Max. Continues Discharge current

10A

Cycle Life

300 times

Dimension

20*70*110mm

Weight

Approx 330g

Storage Temperature

-10°C~45°C

Frequently Asked Questions

Lithium ion battery pack answers, if you do not find the answer you are looking for, please contact us. We’ll get back to you within 24 hours.

1. What is the continuous and peak discharge current?

Rated for 10 A continuous discharge; short‑term peaks up to 15 A are supported by the UL2595 dual‑circuit BMS with thermal switch.

2. Can I change the series/parallel configuration for higher voltage or capacity?

Absolutely—HiMAXBATT can reconfigure cell layouts (e.g. 3S2P for 11.1 V, 2S4P for 156 Ah) to suit your application.

3. Which safety standards does this pack meet?

Fully compliant with UL2595 for dual‑circuit protection, plus CE and RoHS. Detailed test reports are available upon request.

4. What operating temperature range is supported?

Safe operation between –20 °C and +60 °C. For extreme environments, HiMAXBATT can integrate heating/cooling layers.

5. Is bulk pricing available for OEM orders?

Yes—HiMAXBATT offers tiered discounts for orders of 100+ units, including free custom-logo printing and tailored shipping solutions.

Download

Didn’t find the battery you were looking for or need a customized battery please contact us.

#Download Lithium ion battery 7.4V 7800mAh specifications
