6.4V 1000mAh 18500 LiFePO4 battery pack for bedside reading lamps

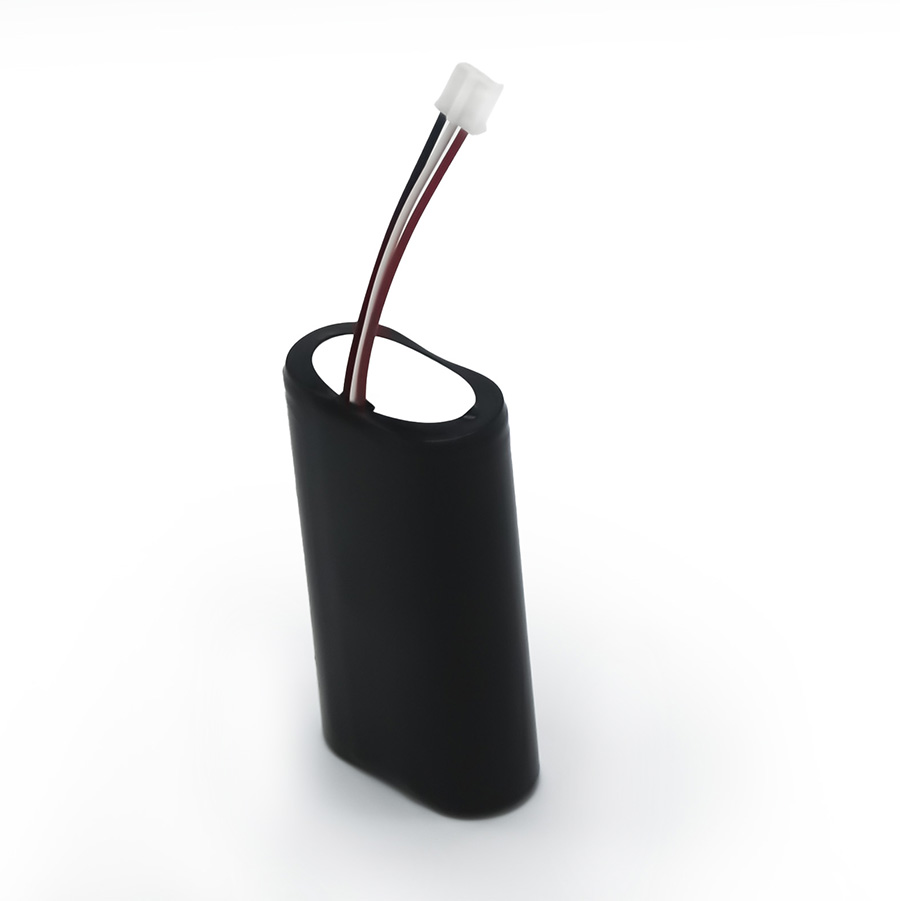

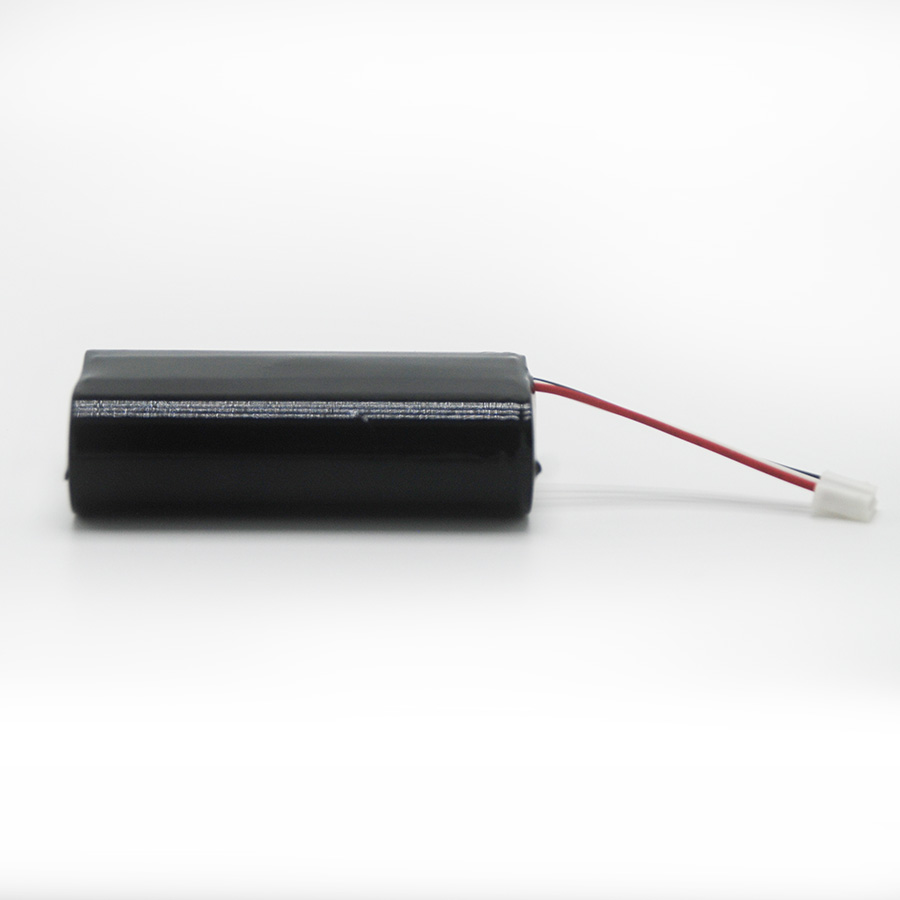

2S1P 18500 LiFePO4 battery pack equipped with JST connector and wire leads

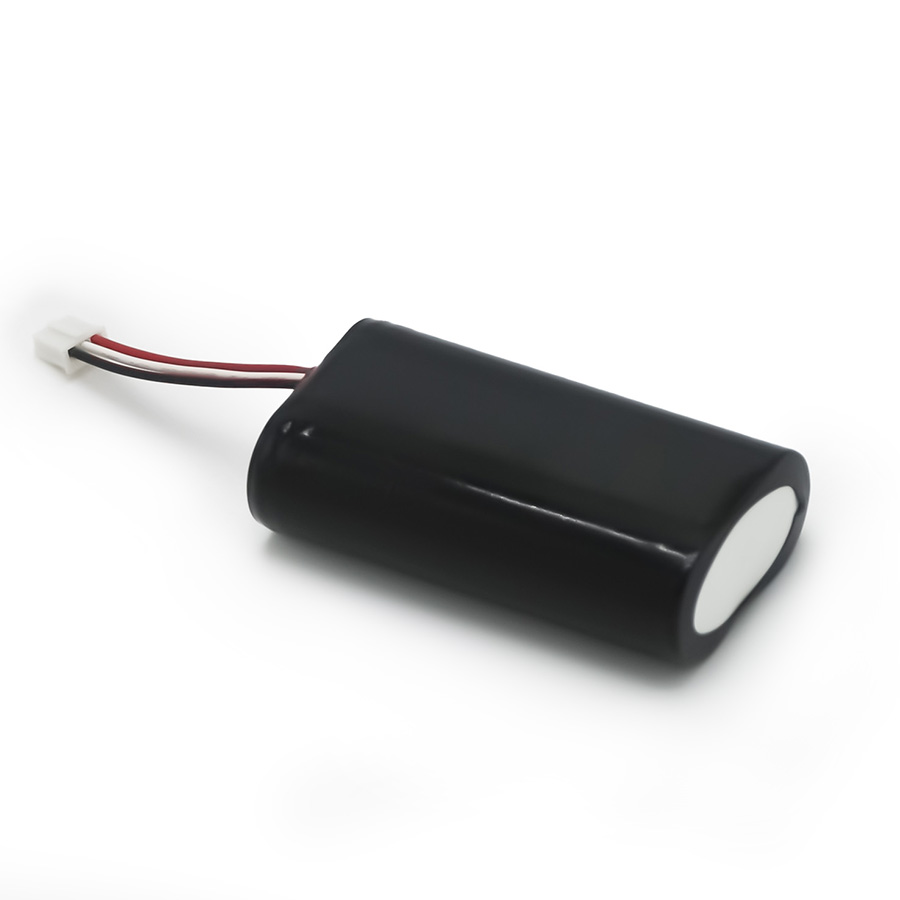

Custom 2S LiFePO4 rechargeable battery pack for low power LED desk lamps

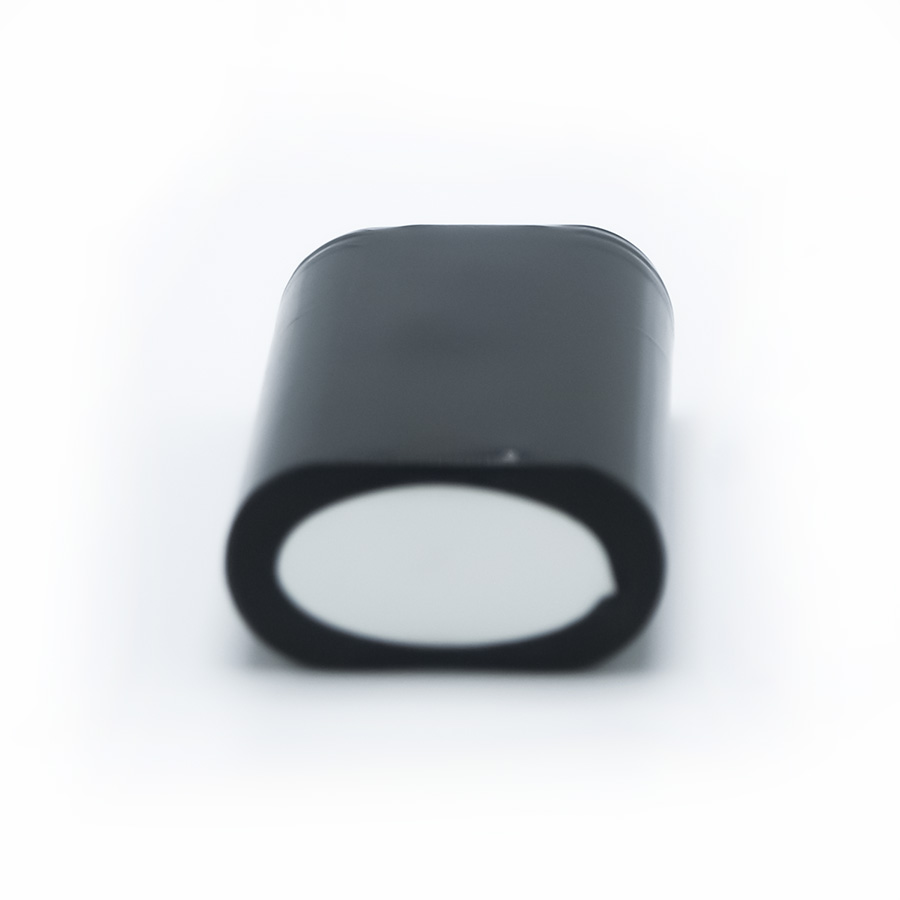

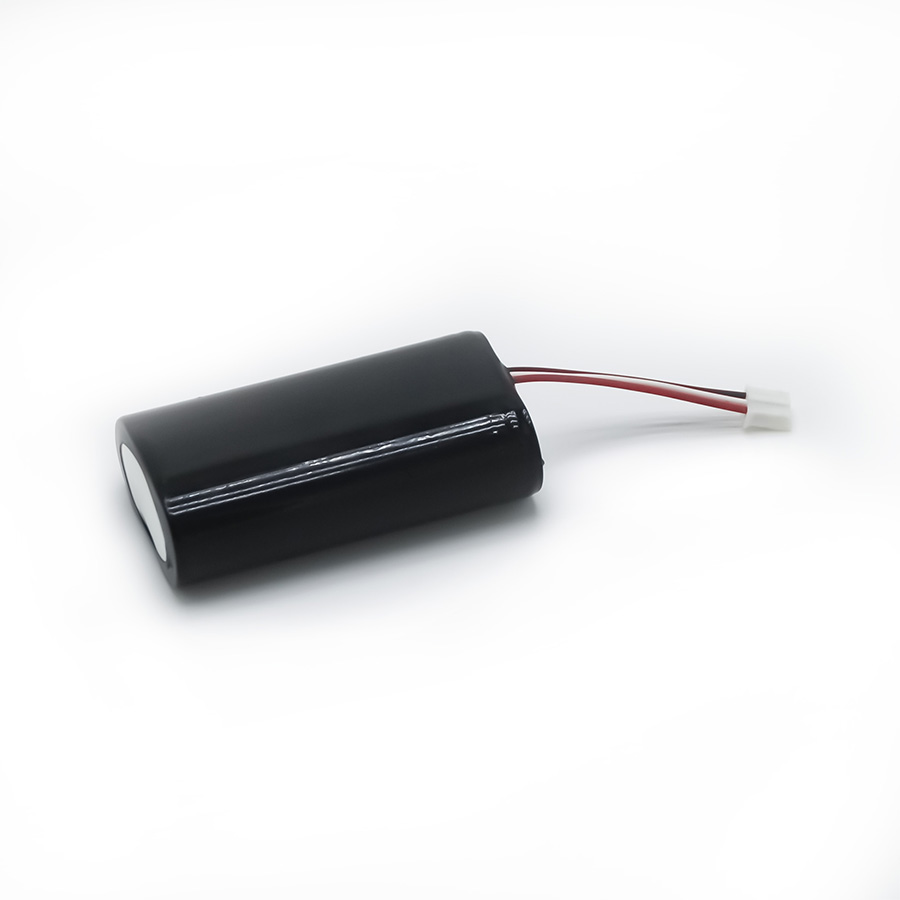

Compact 18500 LFP battery pack 6.4V 1000mAh with PVC heat shrink encapsulation

6.4V 1000mAh battery pack designed for cordless reading lights and study lamps

6.4V 1000mAh 18500 LiFePO4 Battery Pack for Bedside Reading Lamps

A compact LFP platform for low-power cordless lamps where repeated use, controlled output and compact cylindrical cells matter.

Nominal Voltage
6.4V

Nominal Capacity
1000mAh

Energy
6.4Wh

18500 cylindrical cells create a compact 6.4V 2S1P LFP platform.
1000mAh provides 6.40Wh nominal energy for low-to-mid-power lamps.
LFP-specific protection, optional NTC and flexible OEM packaging support long-use designs.

INQUIRY TO BUY

Description
Specifications
FAQs
Download

Compact LFP Power for Everyday Light

6.4V LiFePO4 energy for bedside, study and small cordless lamps designed around repeat daily

🔋 Built for Lamps That Stay Useful Day After Day

Not every bedside or study lamp needs maximum output. Some products need a compact rechargeable source that can be used repeatedly without turning the battery into an oversized part of the enclosure. This design uses two 18500 LiFePO4 cylindrical cells in a side-by-side 2S1P arrangement, targeting 6.4V nominal voltage, 1000mAh capacity and 6.40Wh nominal energy. The target pack size is about 52 x 38 x 20 mm. PVC heat-shrink keeps the pack compact, while the final mechanical envelope is confirmed around the actual cell diameter, insulation, protection board and cable route.

🧪 LFP Chemistry Requires Its Own Charging Strategy

LiFePO4 should not be charged using a charger designed for conventional 3.7V-class Li-ion cells. This 2S pack targets a 7.3V-class full-charge voltage and uses a protection design matched to LFP cells. During engineering evaluation, 0.5C charging and 0.2C discharge provide practical reference points, while final current limits remain tied to the selected cell specification. Validation can include capacity, DC resistance, charging behavior, protection response, short circuit, drop, vibration and temperature cycling. IEC 62133-2:2017 plus AMD1:2021 provides the main portable lithium battery safety reference, with host-lamp requirements considered separately.

Specifications

6.4V 1000mAh 18500 LiFePO4 Battery Pack

Application

Bedside reading lamp / low-power cordless lamp

Chemistry

LiFePO4

Cell Format

18500 cylindrical

Cell Quantity

Configuration

2S1P

Pack Voltage

6.4V nominal

Full Charge Voltage

7.3V class

Pack Capacity

1000mAh

Nominal Energy

6.40Wh

Pack Dimension

About 52 x 38 x 20mm

Pack Weight

About 68 to 76g target

Encapsulation

PVC heat-shrink

Protection

2S LFP PCM/BMS

Connector

JST-PH 2P recommended

Cable

24AWG target

NTC

10k ohm optional

Communication

None

Charge Control

CC/CV for LiFePO4

OEM Customization

Capacity, arrangement, dimensions, cable, connector, NTC and protection settings

Frequently Asked Questions

LFP becomes useful when the project values chemistry-specific operating behavior and long-term daily use more than maximum energy density. The right question is whether that balance fits the

What is special about a 2S LiFePO4 pack?

A 2S LFP pack has a lower nominal and full-charge voltage than a conventional 2S Li-ion pack, so the charger and protection design must match LFP chemistry.

Why use 18500 cells?

The shorter cylindrical format can help reduce battery length in compact lamp bases while keeping a familiar cylindrical construction.

Is 1000mAh suitable for all desk lamps?

No. It is positioned for low-to-mid-power lighting. Higher-output lamps should be reviewed against actual load and required runtime.

Can the NTC be included?

Yes. A 10k ohm NTC is available when the host charging system supports thermistor feedback.

Can the dimensions be customized?

Yes. Cell arrangement, pack envelope, cable exit, connector and protection-board position can be adjusted around the host enclosure.
